182 Series Full Black Bificial N-type 430-450W

182 Series Full Black Bificial N-type 430-450W

Nuuko Brand High Efficiency Full Black Bifacial N-type 430–450W solar module combines sleek aesthetics with cutting-edge technology. Using advanced N-type TOPCon cells, it offers higher efficiency, lower degradation, and excellent performance in low-light conditions. The bifacial design captures sunlight from both the front and back sides, increasing overall energy yield and ensuring maximum return on investment. With a full black appearance, this module delivers a premium, modern look that blends perfectly with residential and commercial rooftops.

Model Number :
NKM-108 N-type 430-450W
Nominal Voltage :
50
Nominal Capacity :
30% deposit, balance before loading
Brand :
China
Size :
1722*1134*30mm
Weight :
24.5
Container Material :
15
Country of Origin :
China

Inquire Now

Product Details

108 cells Half Cut N type TopCon 430-450 Watt Solar Panel

Advantages:
1. 108 Monocrystalline Cells 6*18 Cells, Higher Efficiency
2. High Output Power, Using TOPCON Technology (Low Resistance Characteristics), Output Power Of 108 pcs Monocrystalline Cells Reaches Max 450W (Highest Conversion Efficiency To 23.0%)

3. Low Light Performance, Using Excellent Glass And Texture Surface Making Of Solar Cell, Outstanding Performance Can Be Obtained In Low Light Condition.

4. Adaptability Of Harsh Environment, Corrosion Tests Have Certified In High Salt Fog And High Ammonia Environment.

5. Junction Box Certified According To IEC 62790, IP 67 Approved, 3 By Pass Diodes
6. Glass High Transmission, Low Iron, Tempered, ARC, Transparent, 2.0 MM

7. Mechanical Load Test: 5400Pa

8. Front Glass: 2.0MM Coated Tempered Glass

9. Frame: Anodized Aluminium Alloy

10. Junction Box: Ip68 Rated (3 By Pass Diodes)

11. Output Cables:4.0MM 350MM (+) / 300MM (-), Length Can Be Customized.

12. Connectors: MC4 Compatible

What is Shingled Cell Technology?

Conventional solar modules are made up of a number of solar cells electrically connected using metallic busbars. The solar cells on conventional solar modules have gaps around them and busbars typically cross over the cells to link them together. Shingled solar modules have layers of solar cells which touch each other and electrically connected using an electrically conductive adhesive (ECA). This eliminates the need for metallic busbars. This method means there are no gaps between the solar cells increasing the surface area of the silicon cells in the solar module. Plus there are no busbars covering the cells which reduce the light on the solar cells. This improves the electrical and mechanical performance and the aesthetics of the solar module.

Model	NKM-430N		NKM-435N		NKM-440N		NKM-445N		NKM-450N
ELECTRICAL SPECIFICATIONS
	STC	NOCT	STC	NOCT	STC	NOCT	STC	NOCT	STC	NOCT
Maximum Power(Pmax/Wp)	430	326	435	330	440	334	445	339	450	343
Maximum Power Voltage(Vmpp/V)	32.30	30.30	32.50	30.50	32.70	30.70	32.90	30.90	33.10	31.10
Maximum Power Current(Impp/A)	13.31	10.74	13.38	10.82	13.46	10.89	13.53	10.96	13.60	11.03
Open Circuit Voltage (Voc/V)	38.30	36.60	38.40	36.80	38.60	37.00	38.80	37.20	39.00	37.40
Short Circuit Current(Isc/A)	14.12	11.38	14.05	11.43	14.25	11.48	14.32	11.53	14.39	11.58
Power Tolerance(Positive)	0∽+5		0∽+5		0∽+5		0∽+5		0∽+5
Module Efficiency STC	22.0%		22.3%		22.50%		22.80%		23.0%

Display

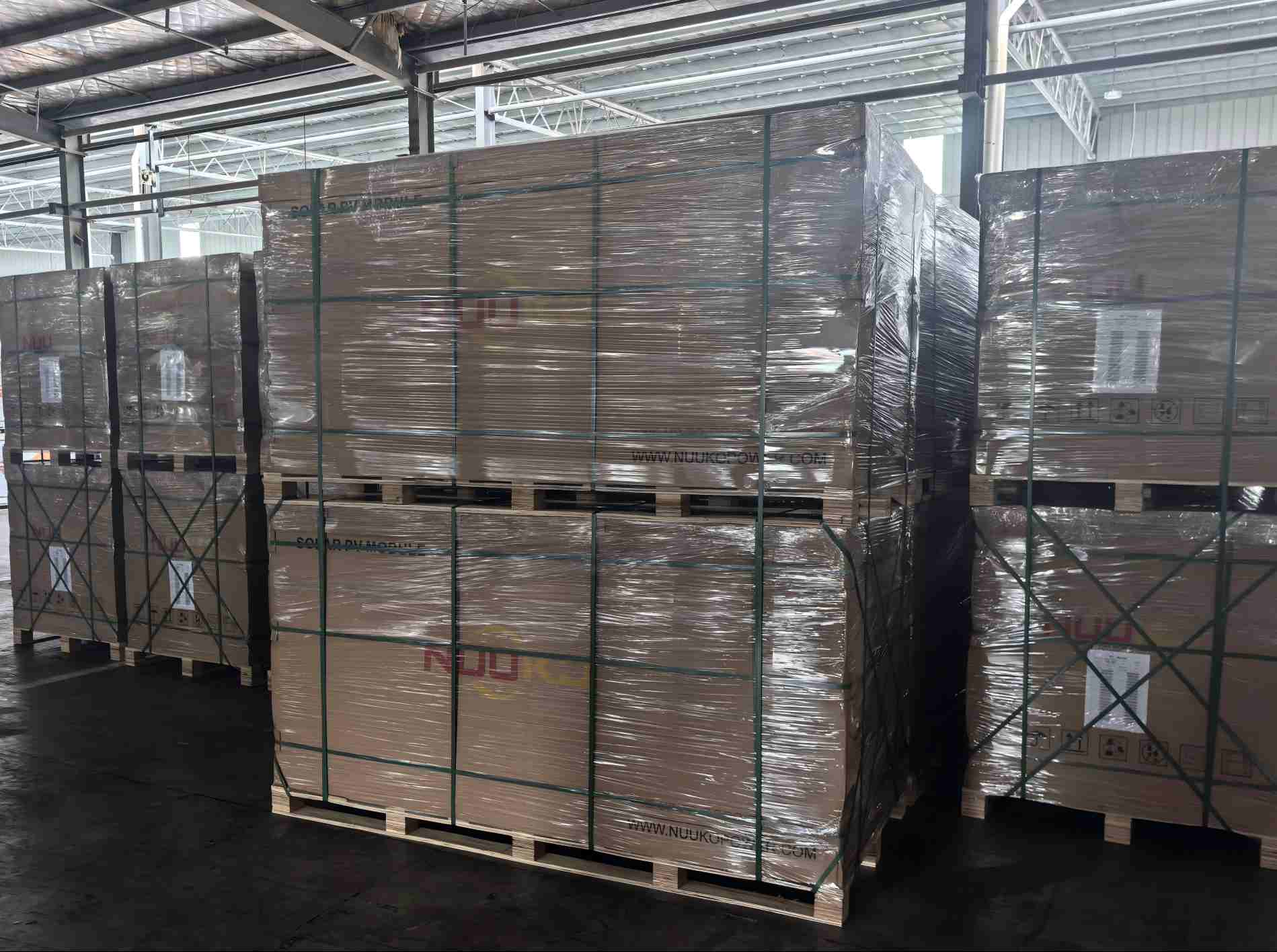

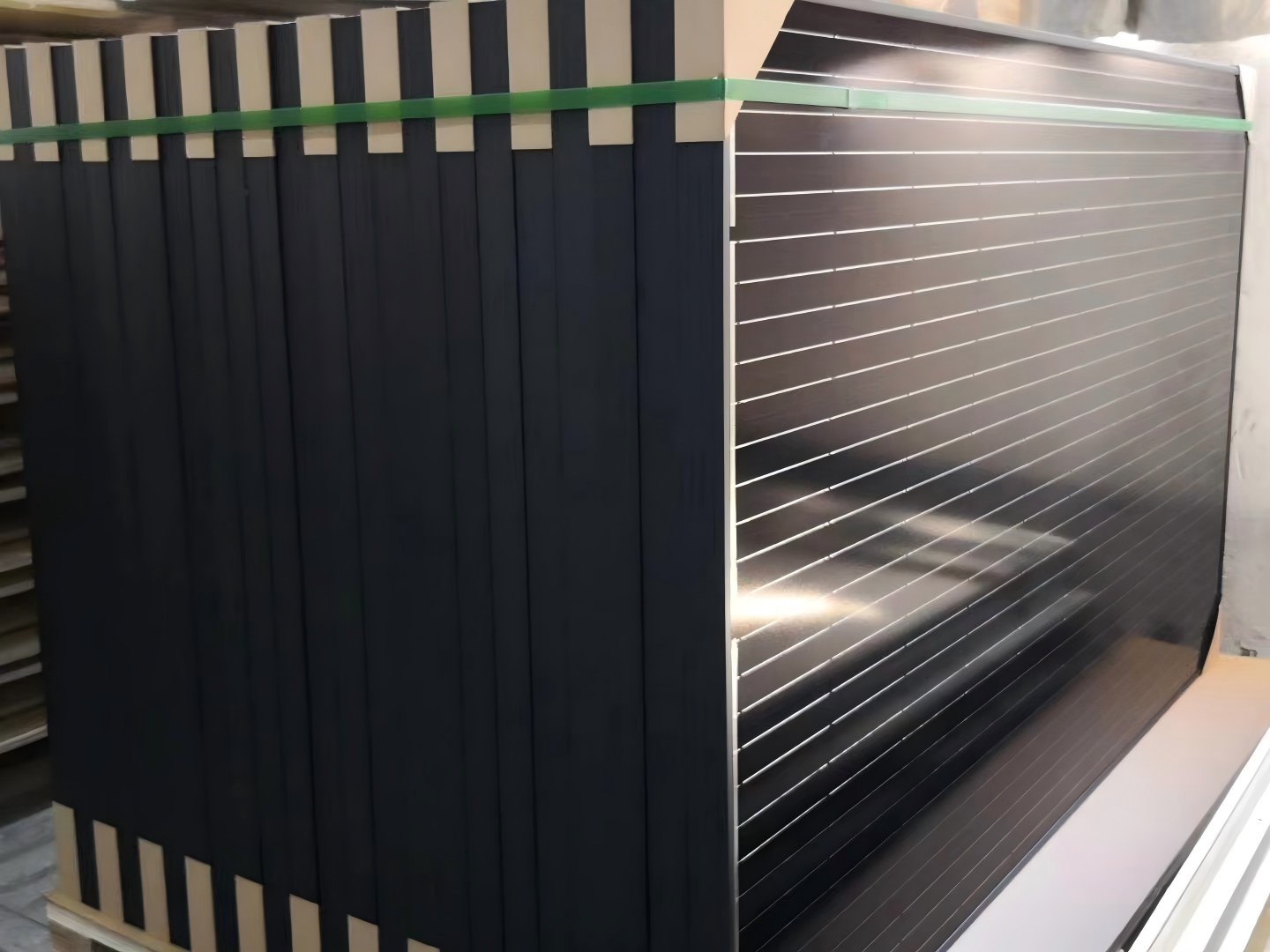

Packaging Process:

Solar Panel Corner Protection→Independent Cardboard Box Packaging→Pallet→Wooden Box→PET Plastic Steel Packaging Belt→PE Winding Film

Product Size: 1722*1134*30mm

Package: 36pcs/Pallet: 936pcs/40HQ

Why Choose Us？

Nuuko Power Co.,Ltd. is a professional solar photovoltaic product manufacturer specializing in the manufacturing and sales of solar panel systems since 2000.

We provide solar power generation system solutions with different solar panel installation structures, including ground-mounted solar systems, solar panel roof installations, photovoltaic carport structures, agricultural photovoltaic structures, etc. Support OEM and ODM services, welcome to visit the factory.

FAQ

Q1: How to choose the right Panel?
A1: Tell us your demand, then our sales will recommend a suitable panel for you.

Q2: What's the difference between Mono and Poly panels?
A2: Monocrystalline solar panels have the highest efficiency rates since they are made out of the highest-grade silicon. The process used to make polycrystalline silicon is simpler and costs less. The amount of waste silicon is less compared to monocrystalline.

Q3: How about the delivery time?
A3: 7 days for sample; 15 days for bulk order.

Q4: What is the warranty for solar panels?
A4: 30 years warranty.

Q5: How to solve the technical problem?
A5: 24 hours after-service consultancy just for you and to make your problem solve easily.
